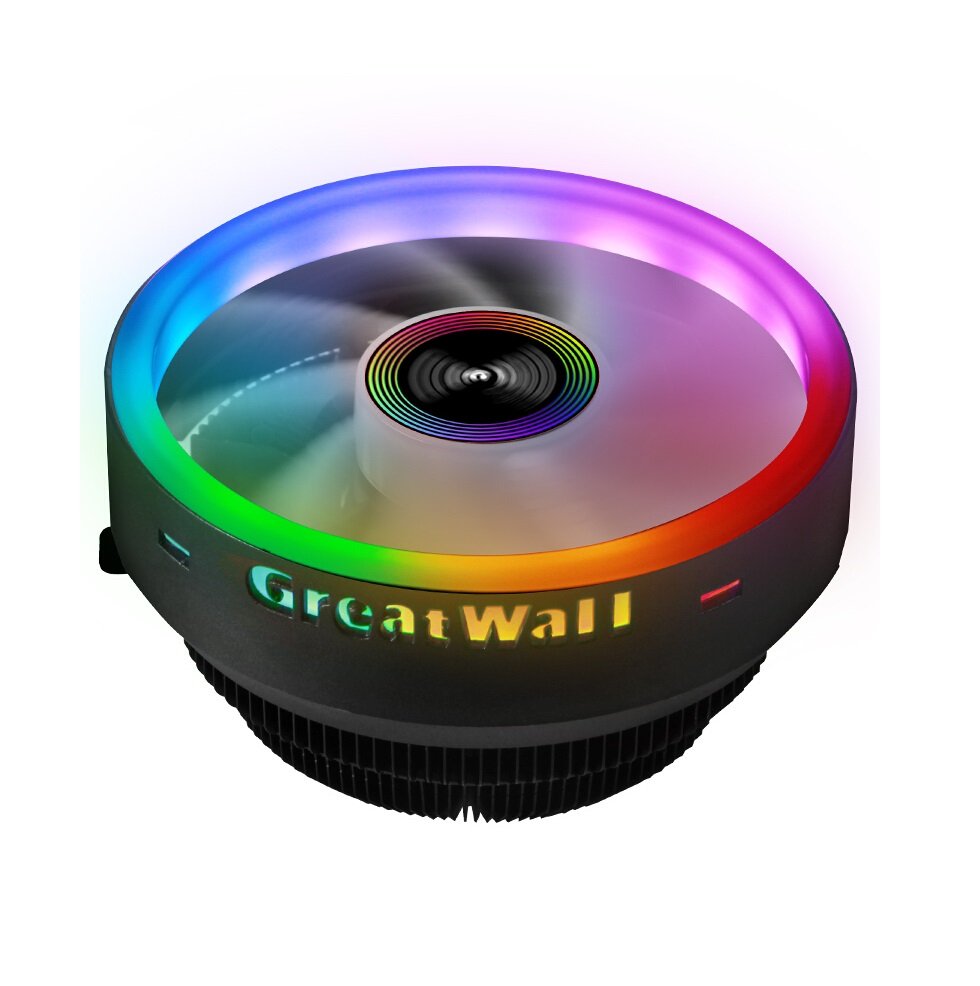

CPU Fan Cooler RGB GreatWall X120
Availability:
In stock
Great Wall Frost Blade X120 (fixed color LED lamp / mirror milling bottom / multi-platform / 40,000 long life / 12cm silent fan / hydraulic bearing
4399 Views
Compare
Descriptions
– Product Size: 130*130*95mm
– Fan Size: 120*120*40mm
– RPM: 1700RPM±10%
– Air Voltage: 1.54mmH20
– Air Volume: 62CFM
– Noise: 25dBA
– Fan Interface: 3PIN
– Rated Voltage: 12VDC
– Rated Current: 0.38(MAX)
– Bearing Type: Hydraumatic
– Life Expectancy: 40,000h
– Weight: 400g
– Lighting Type: RGB
– Full Support on Mainstream Platforms, Popular Accessories Can Be Chosen At Will
– Support Intel Socket LGA 115X/LGA775, AMD Socket FM2/FM1/AM3+AM2/940/939/754
– Easy Installation Without Tools And Excellent Compatibility
Installation Guide
– Intel LGA775 115X Installation Guide
Step 1: Install the bracket on the motherboard and insert four pins
Step 2: The bracket is mounted on the motherboard (the motherboard is placed on a soft surface or suspended)
Step 3: Insert pin to fix the bracket
Step 4: Apply the thermal paste to the CPU evenly
– AMD 754/939/940/AM2/AM2+/AM3/FM1/FM2 Installation Guide
Step 1: Hang the short side bracket hook first
Step 2: Flatten the radiator with one hand
Step 3: Simultaneously press down the profile with the other hand and hang the hook on the other side of the bracket
Step 4: Move left and right, check if the radiator is installed correctly
Package Contents
1 x Radiator (pre-installed fan x1)
1 x AMD Buckle
1 x Intel Adapter
4 x Plastic Buckle
1 x Thermal Grease (Bag)
1 x Instructions
